Needle Roller Bearings NKI Series P6 P5

Brand Name : CSC

Model Number : NKI Series

Certification : AS9100,IATF16949,ISO9001,ISO14001

Place of Origin : China

MOQ : Negotiation

Price : Negotiation

Payment Terms : Negotiation

Delivery Time : Negotiation

Packaging Details : Industrial Packing/Single box Packing

Product Name : Needle Roller Bearing

Precision Rating : P0,P6,P5,ABEC 1, ABEC 3,ABEC 5

Cage : Steel Retainer,Nylon Retainer

Lubricated : Oil

Supply Ability : Negotiation

Contact Now

Needle Roller Bearings NKI Series

Key Feature

CSC can produce high quality Needle Roller Bearings as the customer requests.We are happy to produce further construction methods. Please do not hesitate to contact us for special bearing characters

Product Specification

Bearing No.	Boundary Dimensions(mm)					Basic Load Rating(kN)		Weight (kg)
Bearing No.	d	Fw	D	B	rs	Cr	Cor	Weight (kg)
NKI 20/16	20	24	32	16	0.3	15.2	22.2	0.049
NKI 20/20	20	24	32	20	0.3	19.2	30.2	0.061
NKI 203316	20	24	33	16	0.3	15.2	22.2	0.051
NKI 25/20	25	29	38	20	0.3	22.2	34	0.079
NKI 25/30	25	29	38	30	0.3	33.5	58	0.124
NKI 28/20	28	32	42	20	0.3	23.5	37.8	0.097
NKI 28/30	28	32	42	30	0.3	35.5	64.2	0.146
NKI 30/20	30	35	45	20	0.3	24.8	41.5	0.112
NKI 30/30	30	35	45	30	0.3	37.5	70.5	0.17
NKI 35/20	35	40	50	20	0.3	26.5	47.2	0.127
NKI 35/30	35	40	50	30	0.3	40	80.2	0.193
NKI 40/20	40	45	55	20	0.3	28	52.8	0.142
NKI 40/30	40	45	55	30	0.3	42.5	89.8	0.216
NKI 50/25	50	—	68	25	0.6	40.2	88	0.27

Application

Logistic Transport Facilities
Automation Technology
Machine Tools
Aerospace Industry
Mechanical Engineering
Industrial Robots
Textile Machinery
Automotive Industry
Construction Machinery
Electric Motors
Gearboxes

Selection of Bearings

Our team of specialists from the German rolling bearing industry supports you by stress analyzes and calculations in the selection of the right bearings.

Stress Analyzes
Storage and Durability Calculations
Design advice for "Non-standard bearings"
Selection of Greasing
Quality Analysis
Damage Analysis

DownLoad The Catalog!

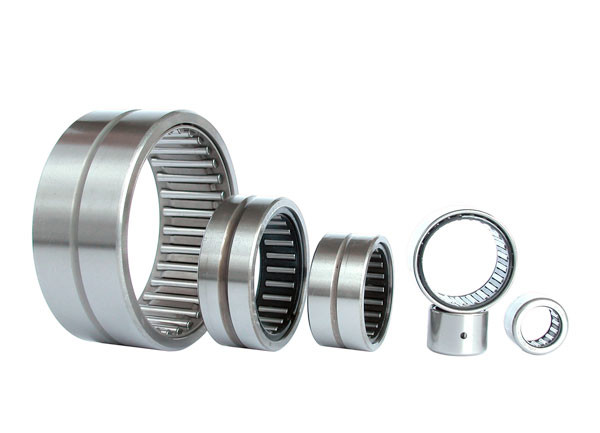

Needle Roller Bearings NKI Series P6 P5 Images
