10mm Bore Open ZZ 2RS 4 Point QJ300 Contact Bearing

Product Categories

Industrial Bearings [84]
High Precision Bearings [82]
Stainless Steel Bearings [38]
Textile Machinery Bearings [130]
EMQ Bearings [20]
Elevator Bearings [18]
Reducer Bearings [22]
Chemical Fiber Machinery Bearings [24]
Air Compressor Bearings [30]
Pump Bearings [30]
Agricultural Bearings [28]
Special Bearings [4]

CSC BEARING CO., LTD.

Contact Now

10mm Bore Open ZZ 2RS 4 Point QJ300 Contact Bearing

Brand Name : CSC

Model Number : QJ300 Series

Certification : AS9100,IATF16949,ISO9001,ISO14001

Place of Origin : China

MOQ : Negotiation

Price : Negotiation

Payment Terms : Negotiation

Delivery Time : Negotiation

Packaging Details : Industrial Packing/Single box Packing

Product Name : Four Point Contact Ball Bearings

Precision Rating : P0,P6,P5,ABEC 1, ABEC 3,ABEC 5

Bore Size : 10mm-300mm

Cage : Steel Retainer,Nylon Retainer,Brass Retainer

Seal Type : Open,2RS,ZZ

Lubricated : Oil,Grease

Vibration : Z1,Z2,Z3,Z4,V1,V2,V3,V4

Clearance : C0,C3

Supply Ability : Negotiation

Contact Now

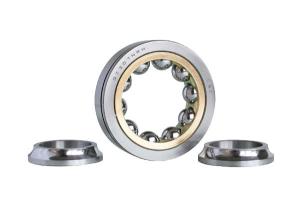

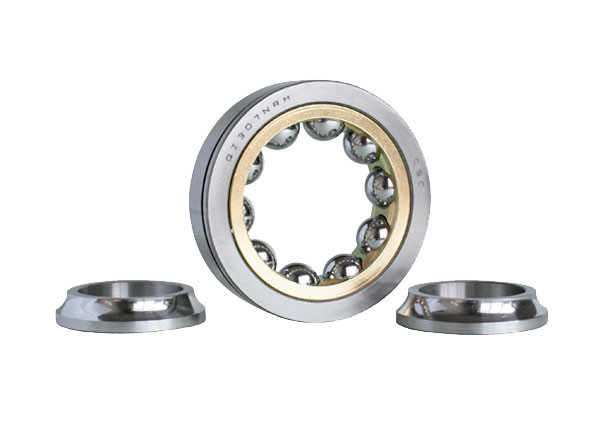

Four Point Contact Ball Bearings QJ300 Series Open ZZ 2RS P6 P5

A four-point contact ball bearing makes it easy to simplify machine designs that have a combination of radial, thrust and moment loads because it can handle all three simultaneously. They are primarily used for slow to moderate-speed applications, or where oscillatory movement is predominant.

Key Feature

CSC can produce high quality Four Point Contact Ball Bearings as the customer requests.We are happy to produce further construction methods. Please do not hesitate to contact us for special bearing characters

Product Specification

Model	Dimension(mm)				Basic Load Rating(kN)		Weight (kg)
	Dimension(mm)				Basic Load Rating(kN)
	d	D	B	rs min	Cr	Cor
QJ 206M	30	62	16	1	35.1	28.5	0.254
QJ 207M	35	72	17	1.1	46.2	39	0.359
QJ 208NRM	40	80	18	1.1	52.7	45	0.48
QJ 209M	45	85	19	1.1	58.5	51	0.467
QJ 210M	50	90	20	1.1	61.8	56	0.697
QJ 211M	55	100	21	1.5	79.3	76.5	0.78
QJ 212M	60	110	22	1.5	92.3	86.5	1
QJ 216MA	80	140	26	2	132.4	137	1.739
QJ 305M	25	62	17	1.1	42	33	0.256
QJ 306M	30	72	19	1.1	49.4	39	0.379
QJ 307NRM/C3	35	80	21	1.5	59.2	46.5	0.58
QJ 308NRM/C3	40	90	23	1.5	71.5	58.5	0.704
QJ 309NRM/C3	45	100	25	1.5	93.6	76.5	0.934
QJ 310M	50	110	27	2	111	91.5	1.39

Precision Rate	P0,P6,P5,ABEC 1,ABEC 3,ABEC 5
Vrbration	Z1,Z2,Z3,Z4,V1,V2,V3,V4
Bore Size	10mm-200mm
Cage	Steel Retainer,Nylon Retainer
Seal Type	Open,2RS,ZZ,2RSE,2RZ,N,NR,RS,Z
Lubricated	Oil,Grease
Clearance	C0,C2,C3,C4,C5

Application

Logistic Transport Facilities
Automation Technology
Machine Tools
Aerospace Industry
Mechanical Engineering
Industrial Robots
Textile Machinery
Automotive Industry
Construction Machinery
Electric Motors
Gearboxes

Selection Of Bearings

Our team of specialists from the German rolling bearing industry supports you by stress analyzes and calculations in the selection of the right bearings.

Stress Analyzes
Storage and Durability Calculations
Design advice for "Non-standard Bearings“
Selection of Greasing
Quality Analysis
Damage Analysis

Details

Packing	Paper box,Carton,Wooden Pallets,According to the requirements of clients
	a) Plastic tube+ Carton+ Pallet
	b) Plastic Bag+ Kraft Paper+ Carton+ Pallet
Commercial Packing	Plastic Bag+ Color Box+ Carton+ Pallet
Delivery	3-30 days after order of Solid bicycle tire tubes

FAQ:
Q: Can you print our logo on the bearings?
A: yes we can

Q: Why do we choose your company?
A: Our company has been a professional bearing manufacturer for more than 10 year. We pay more attention to quality. For each shipping, there are professionalists to check quality of products.

Q: What is the delivery time?
A: We have stock for most of the bearings. For small quantity, we will arrange delivery about 1-5 days,if you need Urgently,please confirm them with us.

Q: What is your payment term?
A: Our payment term include Alipay,T/T, Western Union, Paypal etc.

Q: Can you send bearing samples first?
A: Yes, we can send bearing samples to check quality first.

Q: What is your MOQ?
A: For common bearing model number, our MOQ is 1pc.

If you are interested in any model, please feel free to contact with me!
